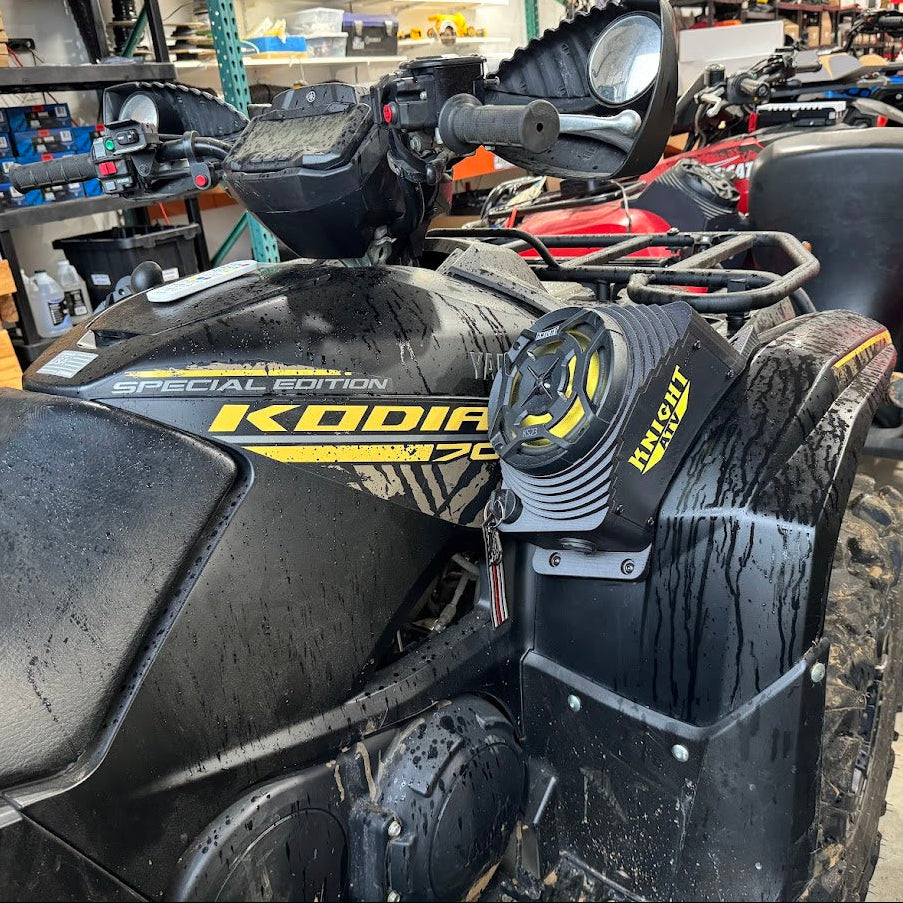

Fender Speaker Kit - Yamaha Kodiak ATV

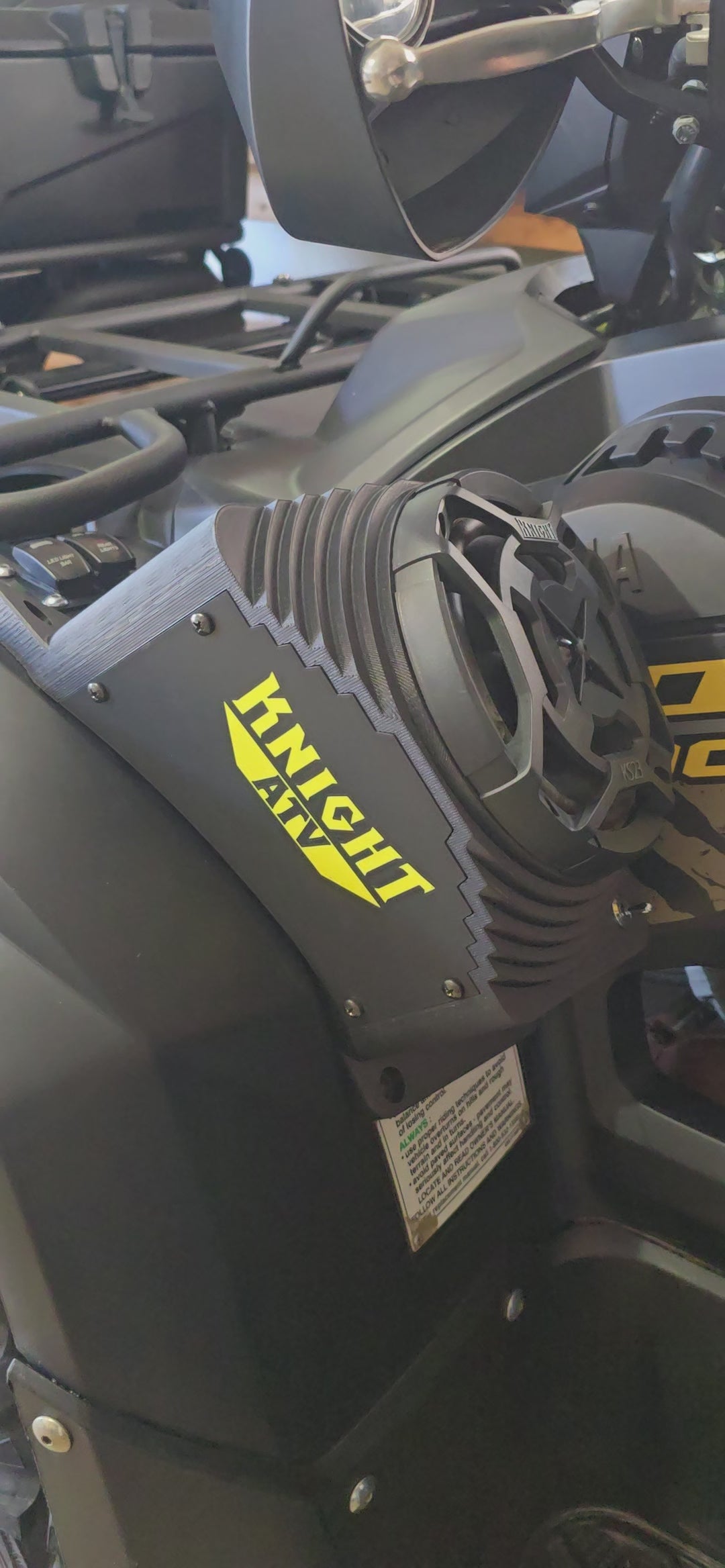

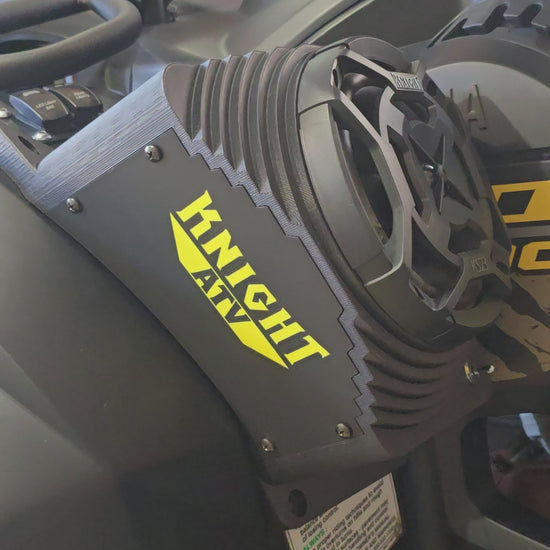

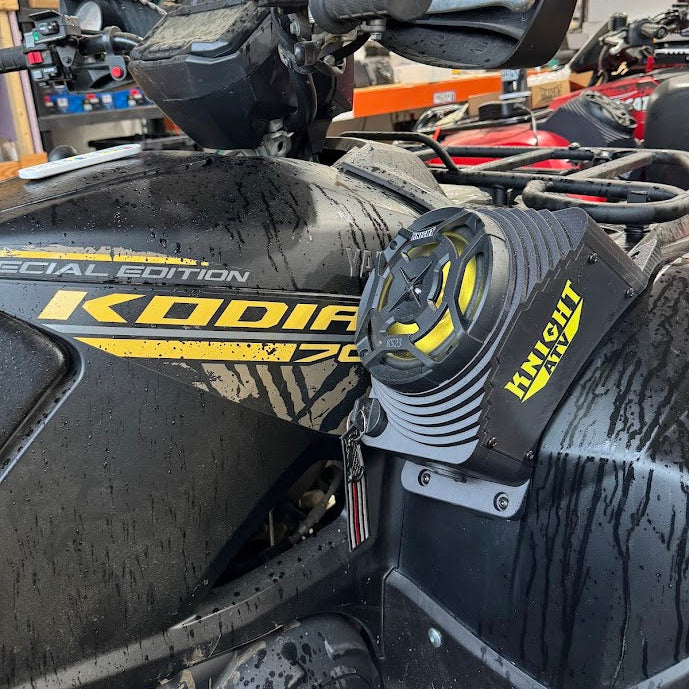

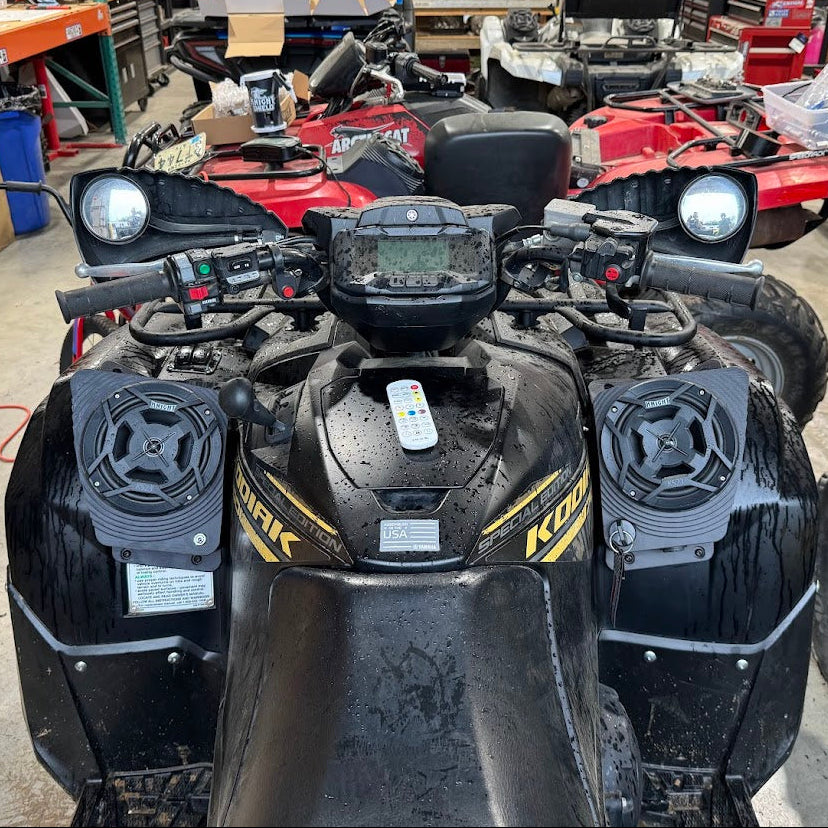

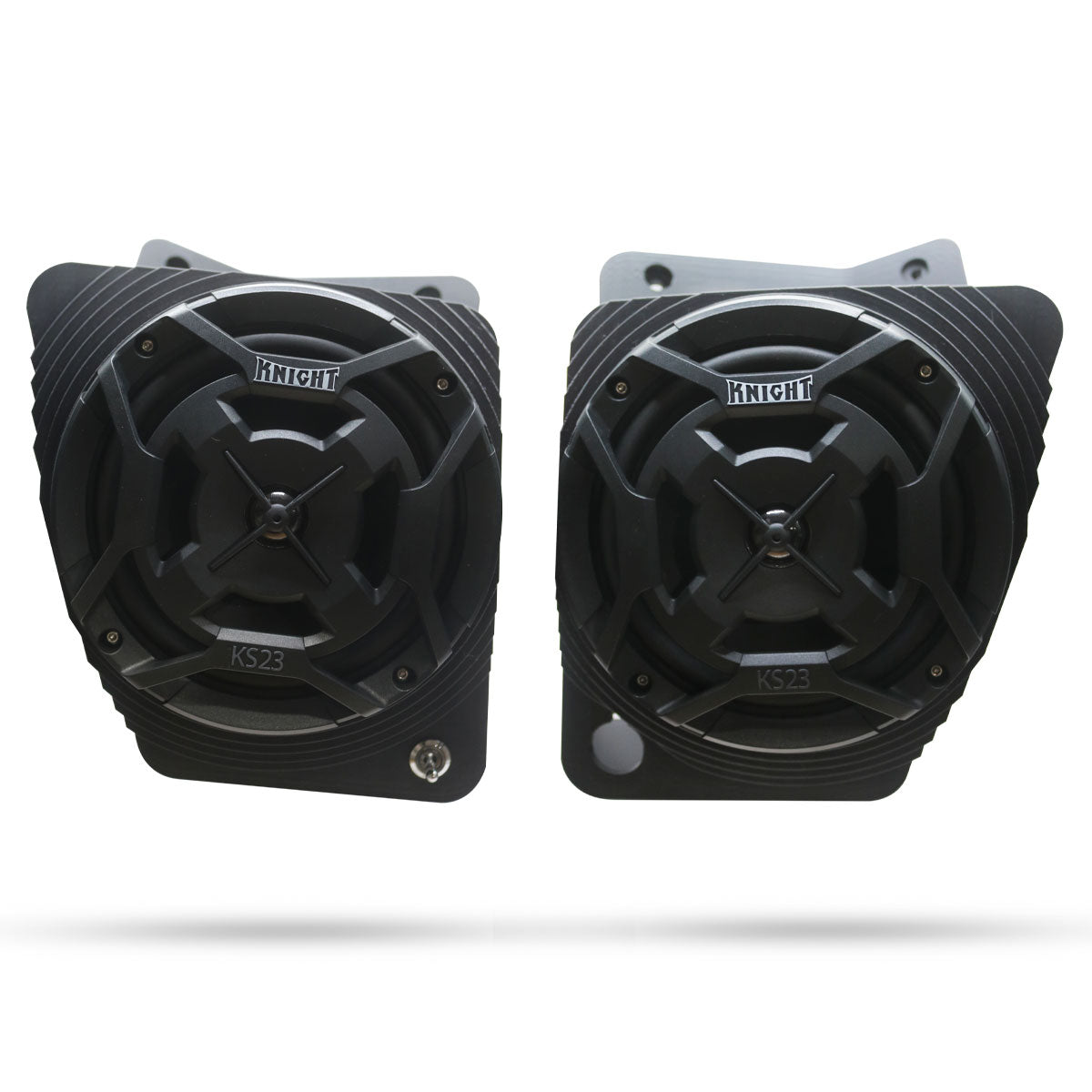

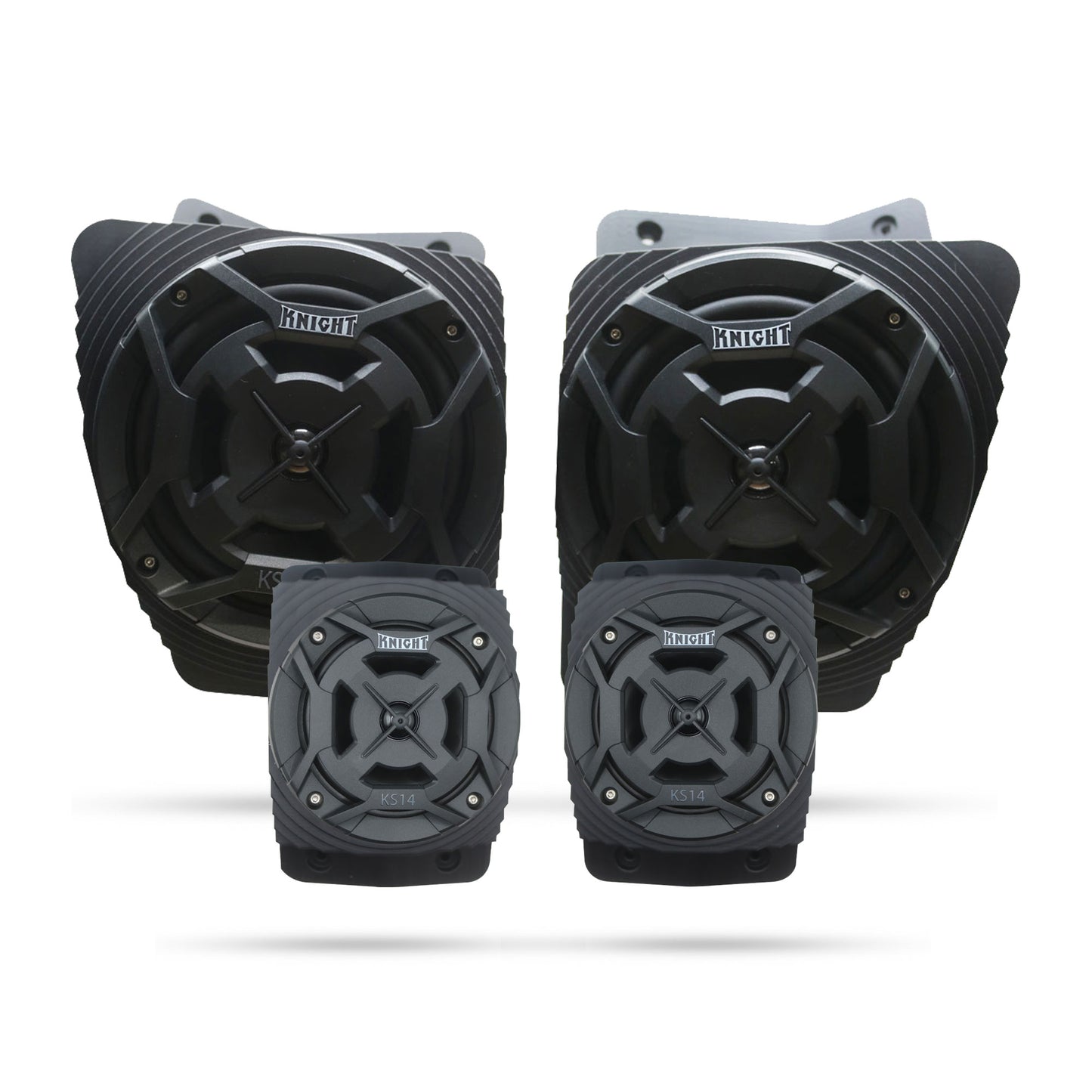

Introducing our new innovative speaker housings for your ATV! Custom laser scanned and CAD designed speaker housings fit perfectly snug on your OEM fender plastics. Sold as a complete speaker kit with all necessary components to install on the vehicle. Or you can purchase the unloaded speaker housings and build your own speaker kit. (These speaker housings fit 6.5" speakers)

Unique Features:

• Custom fit. Laser scanned and 3D modeled specifically for ATV fender plastics.
• Completely Plug and Play. No splicing wires or figuring anything out. It is all set up for you to install!
• If you are going to plug in an MP3 player, let us know to include those wires, or contact us after you buy the kit and we will send them to you.
• LED lights can always be added later. If you do not select the LED option and want it later you can purchase the controller, remote and wiring separately.

Fits

• 2016 - Present Kodiak 700
• If you fenders look like the fenders in our pictures it will fit your vehicle! Call us, send us pictures and videos, we will help you out!

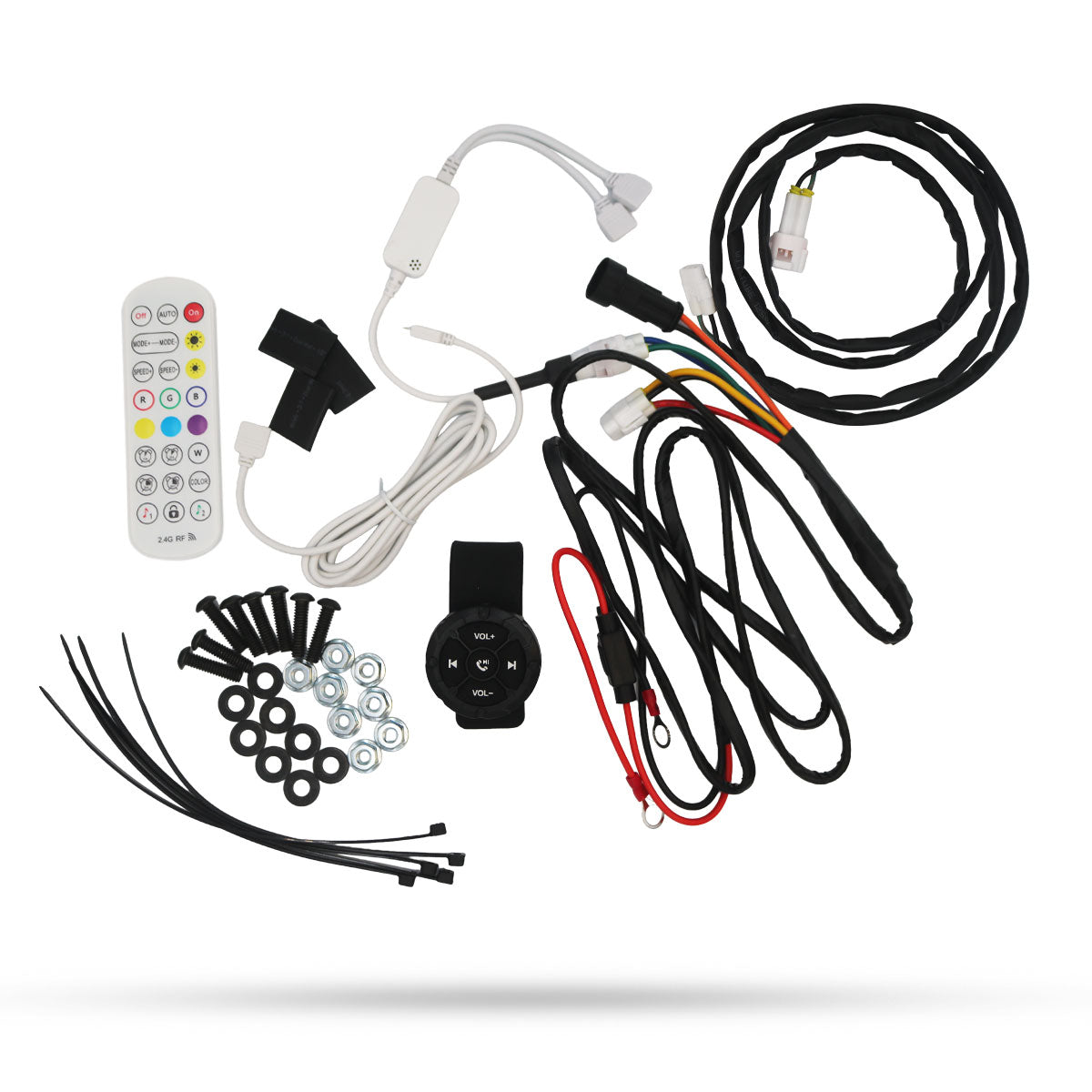

Includes

• Waterproof, submergible, Complete Speaker Kit:

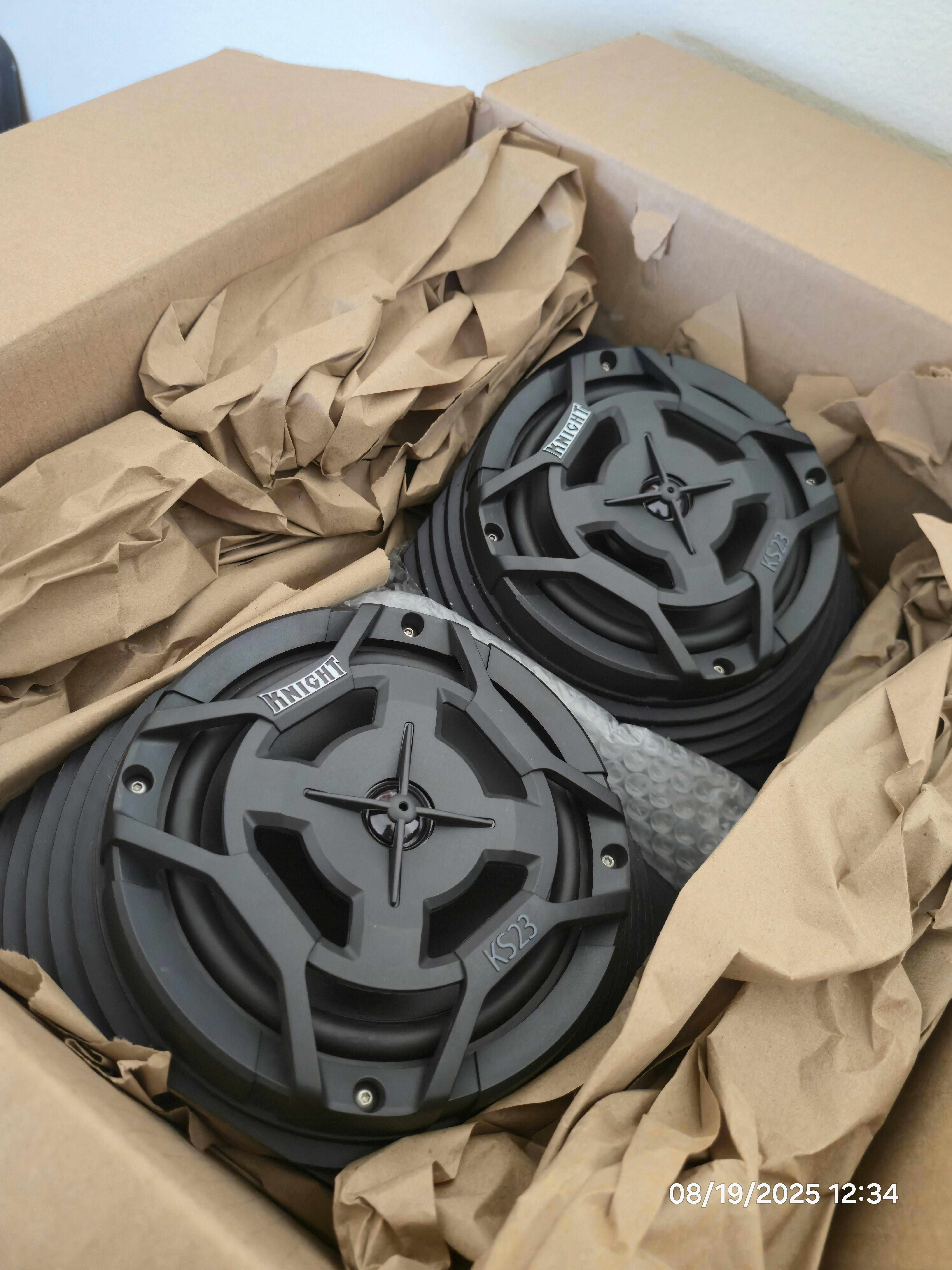

  • (2) 6.5" Knight ATV Marine Speakers
  • (1) Marine amplifier (Bluetooth accessible or aux wire ready)
  • Mounting Hardware

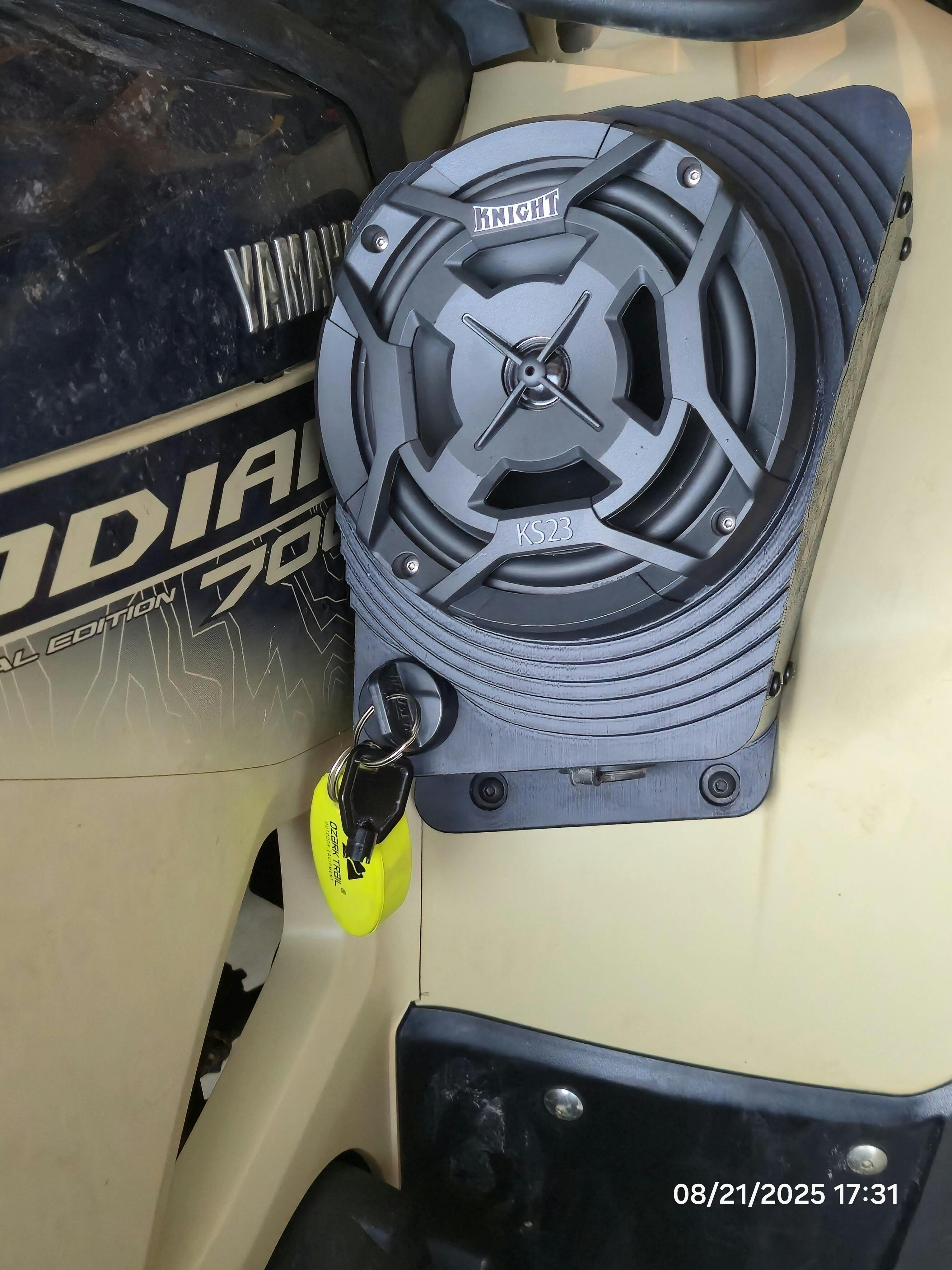

  • Waterproof on off switch with red LED light
  • All necessary wiring to make it plug and play
  • 2 year warranty


Installation

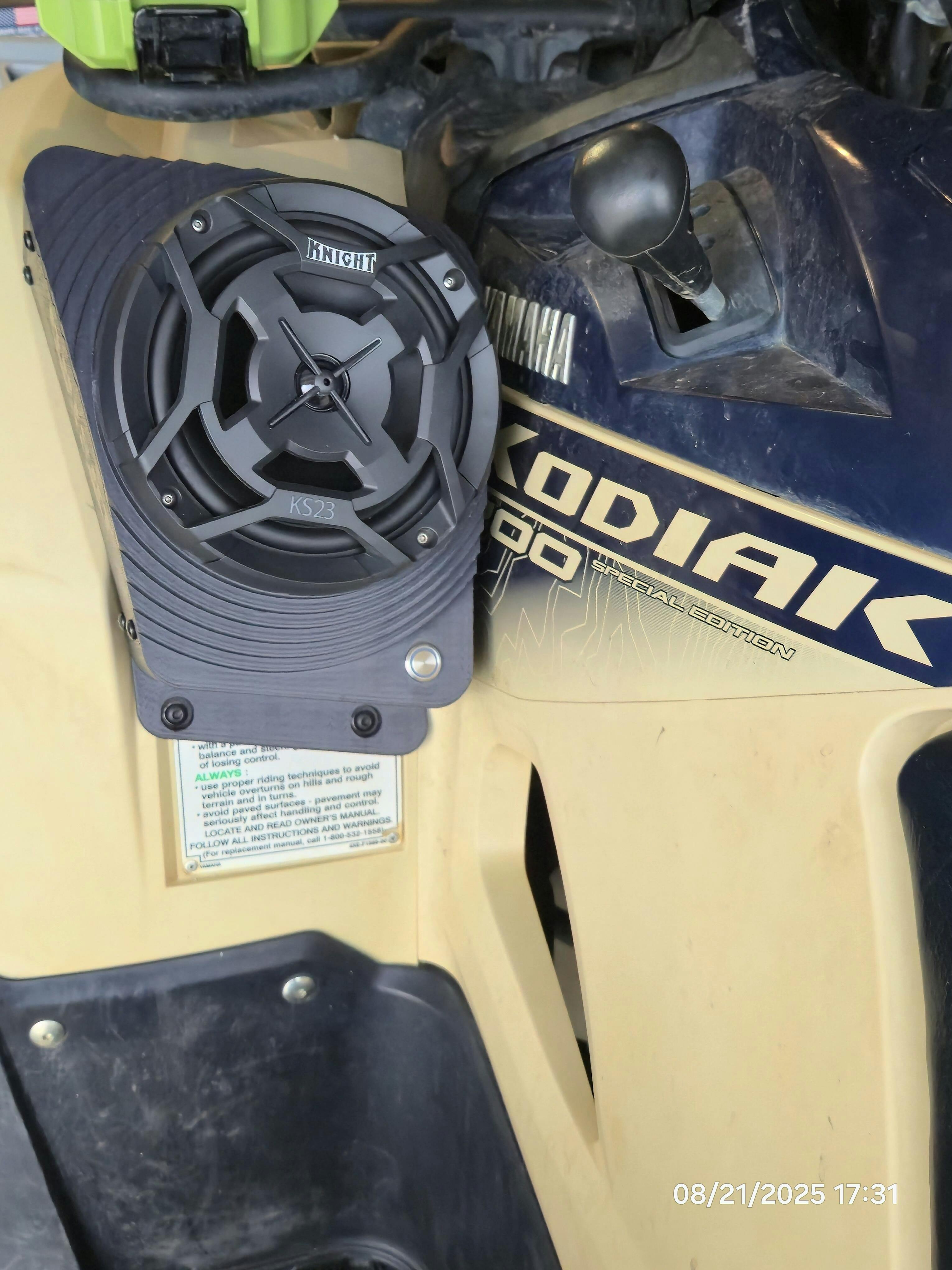

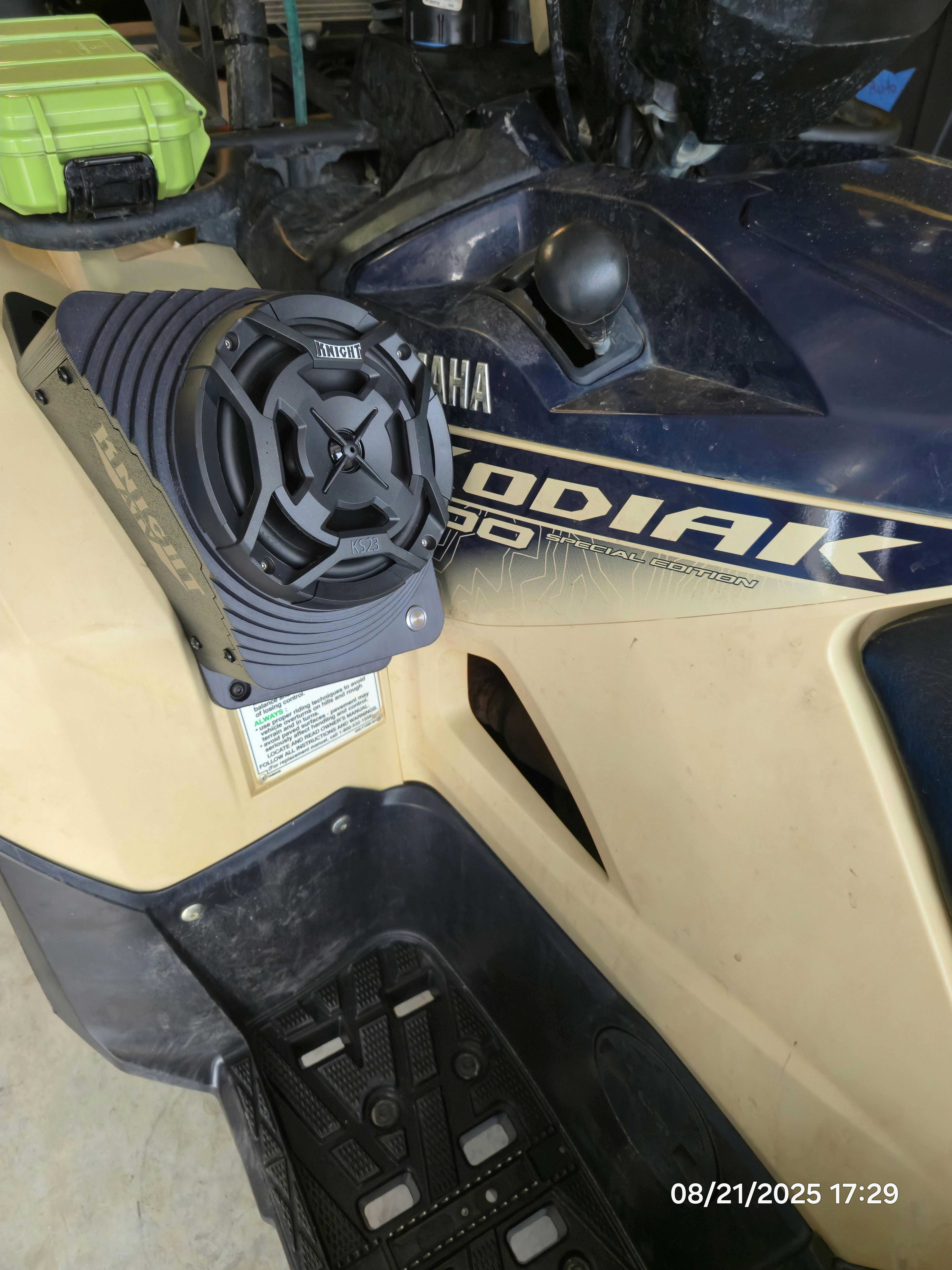

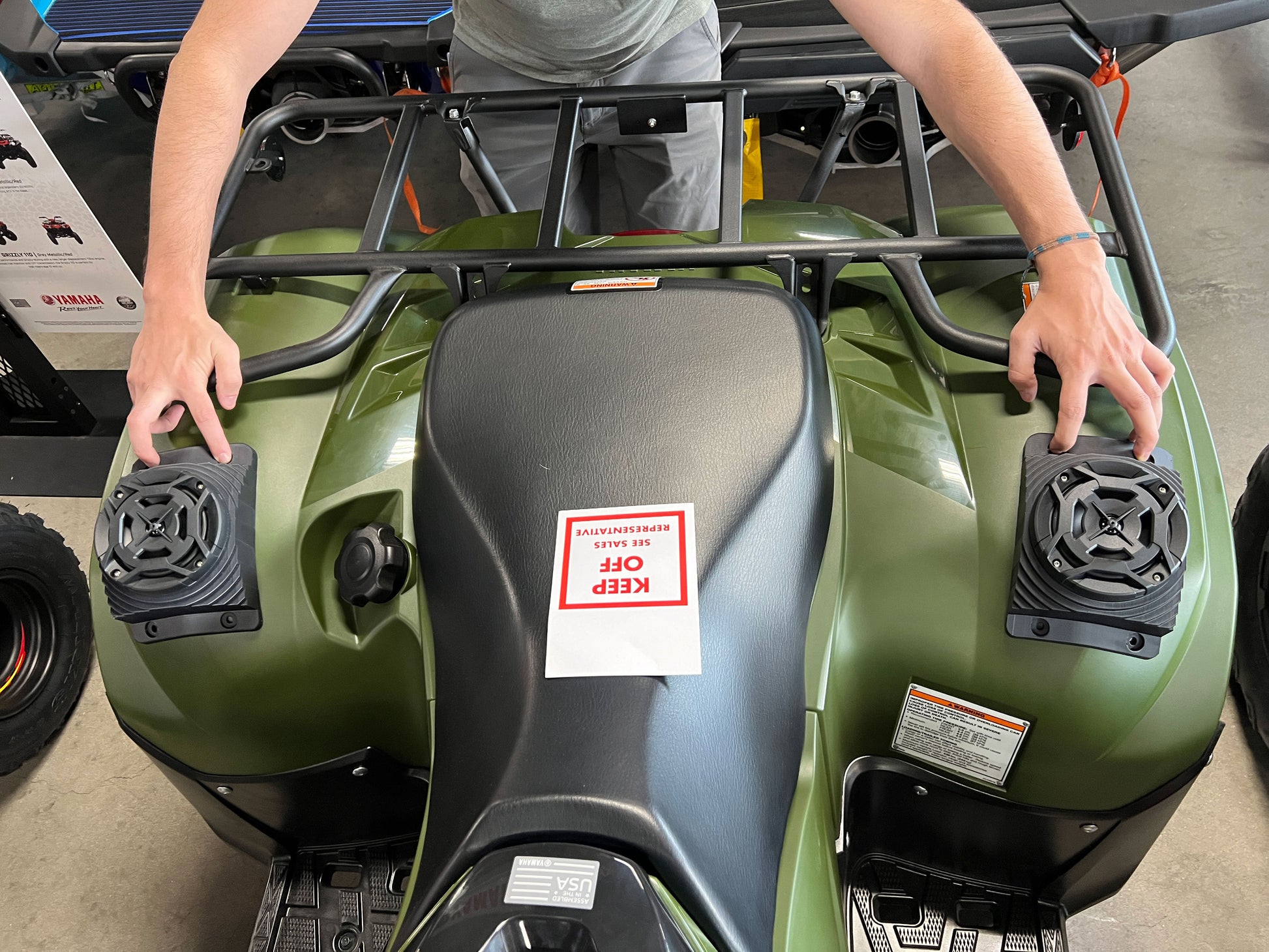

1. Place the left speaker housing (the one with the amplifier mounted inside it) on the left fender so that it sits flush against the surface, slide it around until you feel it set into its perfect location.
2. Drill 4 holes into the fender for the mounting bolts, don't bolt it on yet.
3. After that, notice where the wires will be, about center but a little lower than the speaker. Drill a hole near the bottom center of the speaker housing for the wiring harnesses.
4. Push all the wires through and then mount the speaker housing to the fender. DO NOT over tighten the bolts to secure the housing to the fender plastic.
5. Run the wires for the other speaker, and LED (if purchased), to the right speaker. Somewhere along the front of the quad, keep the wires away from moving and hot parts. Wait to secure these with cable ties until after the speakers are fully installed and tested.
6. Line up the right speaker housing on the right fender. Drill the same holes as the left side.
7. Push the wires from the left side through that center hole and connect the wires to the speaker and the LED (if purchased), make sure to line up the little arrows on the LED wires.
8. Bolt the speaker to the fender, DO NOT over tighten the bolts.
9. Run the Black and Red wire from the left speaker to your battery, connect the red wire to positive and black wire to negative.
10. Turn it on and connect Bluetooth and test LED's
11. Fasten all the wiring away from moving and hot parts using cable ties. Use duct tape or silicone to fill in around the holes that the wires come out of.
12. Done! Go ride and enjoy!

Here is a video installing these on an ATV, the process is the same for all makes and models.
