Brute Force - Prairie Kebc Delete + Hole Cover Combo

Brute Force - Prairie Kebc Delete + Hole Cover Combo

SKU:BF-500

Regular price $89.99 USD
Regular price Sale price $89.99 USD
Sale Sold out

This will bypass the belt switch which is a common failure point and puts your ATV in limp mode. No more limp mode!

Our KEBC Delete with Hole Cover Combo allows you to remove your Kawasaki Engine Brake Control (KEBC).  Your engine will perform normally and you will no longer go into limp mode again!

Plug and Play design allows for easy installation.  Once installed you can choose to leave your KEBC actuator on your vehicle, or remove it altogether.

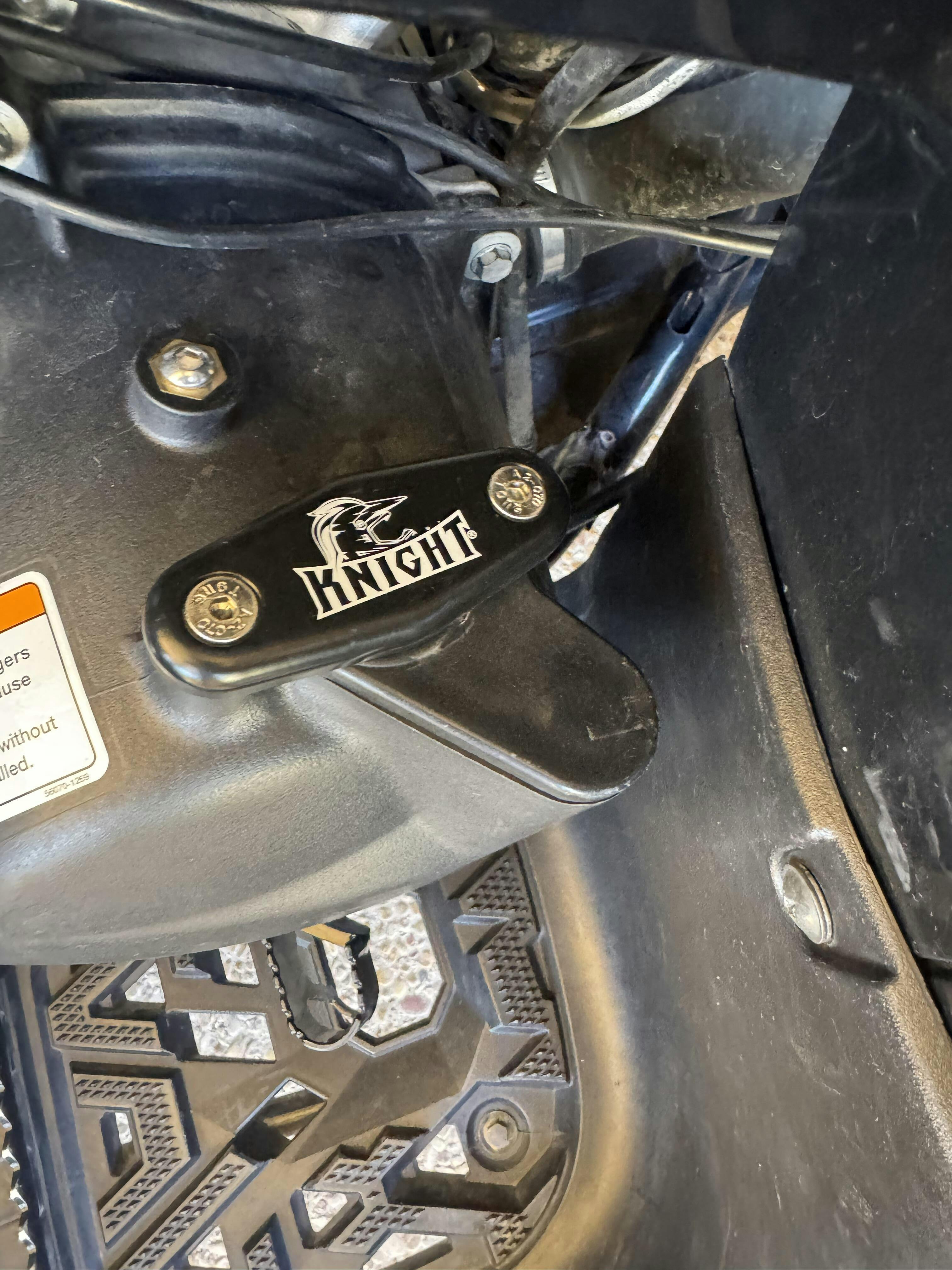

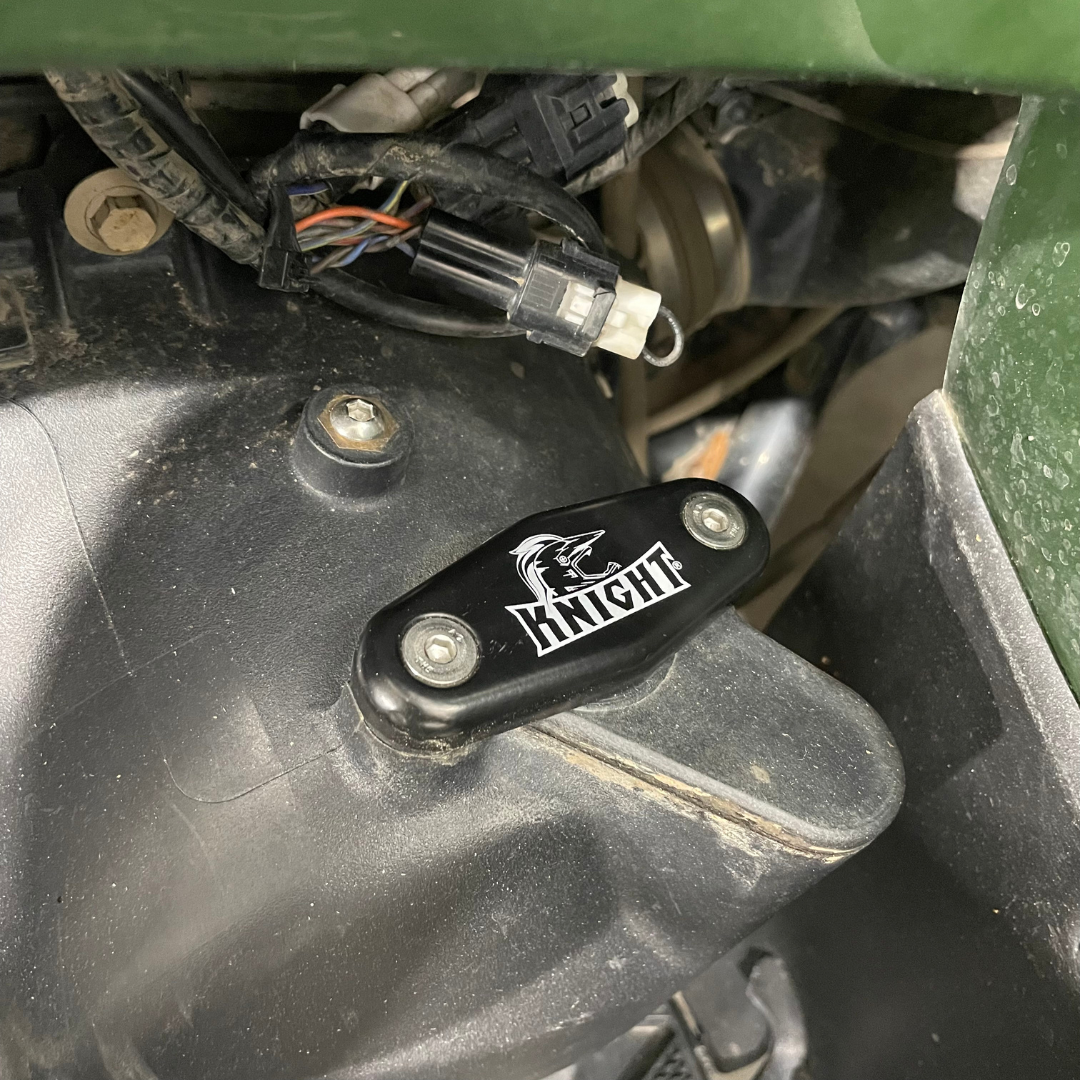

Aluminum hole cover kit replaces the KEBC actuator housing to prevent any intake of water or mud.

This kit is also a must have for your display lights to function properly with any of our manual conversion kits!  Without it, your display lights will not function.

Our Belt Switch Bypass Kit is now included with this kit for FREE!

Fits

  • All Brute Force
  • All KVF
  • All Prairie
  • 2004 Suzuki Twin Peaks LT-V700F
  • 2004-2006 Arctic Cat 650 V-2

Replaces OEM part numbers 16172-0017 & 16172-0019

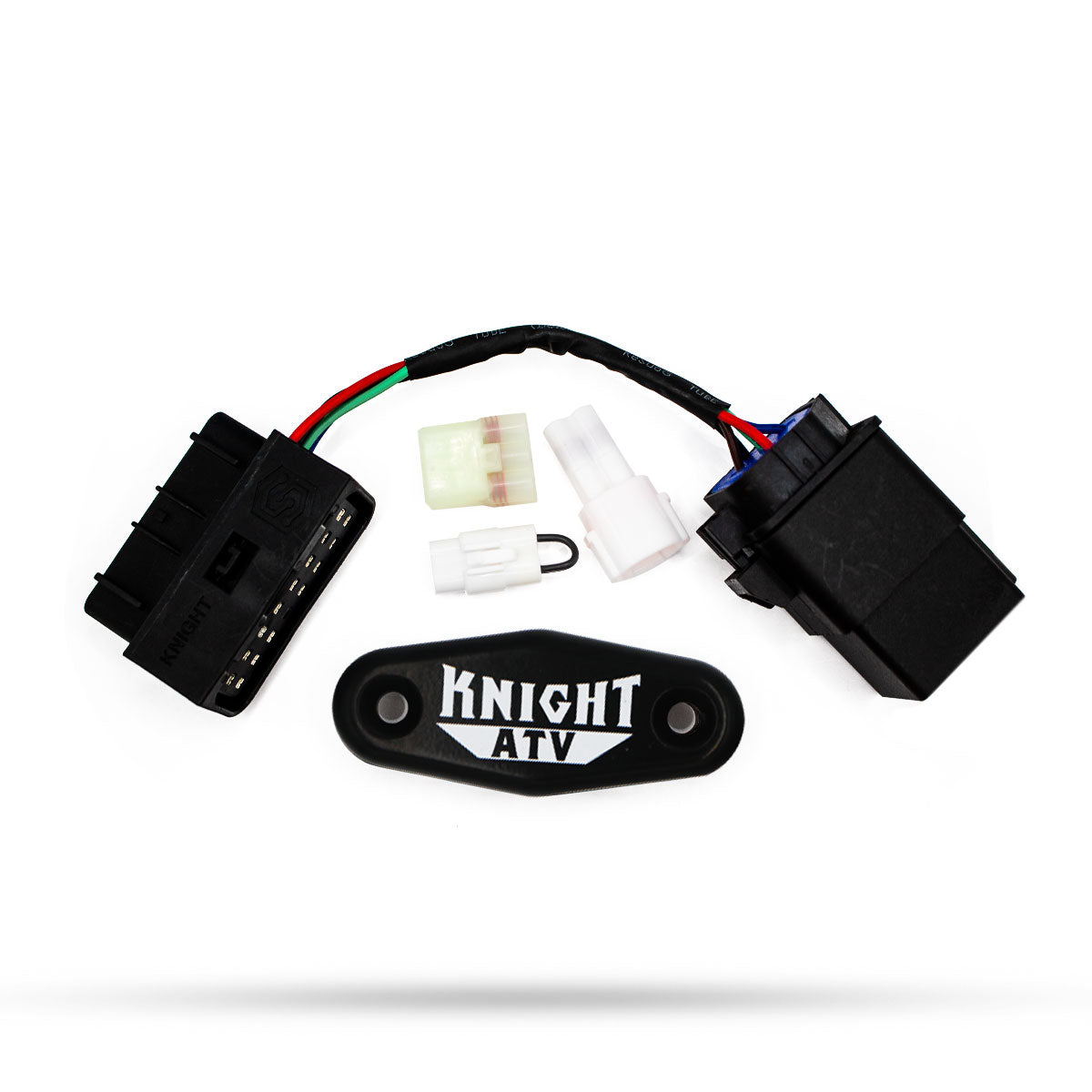

Includes

  • KEBC Delete Wire Harness
  • 6 Pin Connector Plug
  • Aluminum Hole Cover Kit
  • Belt Switch Bypass

Installation

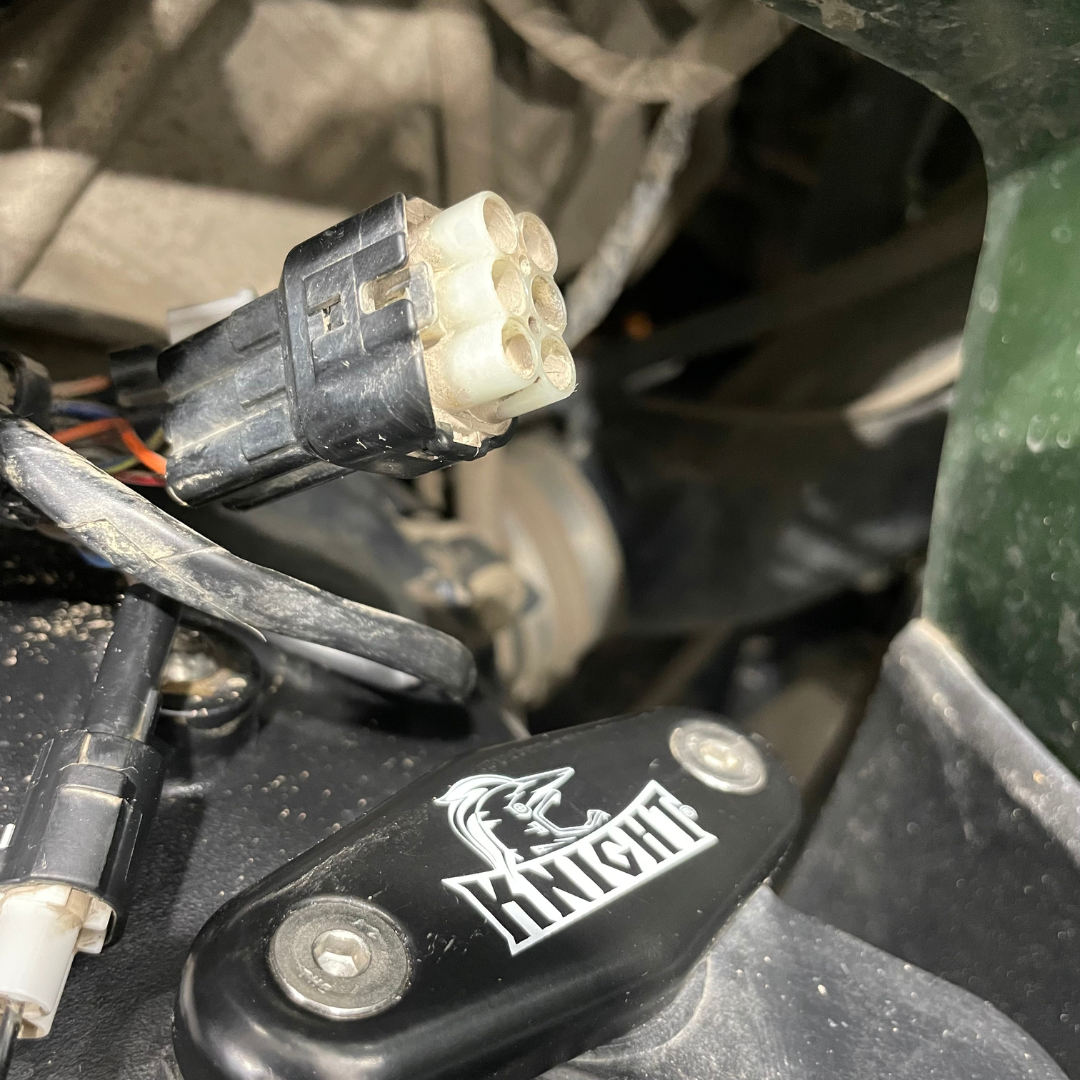

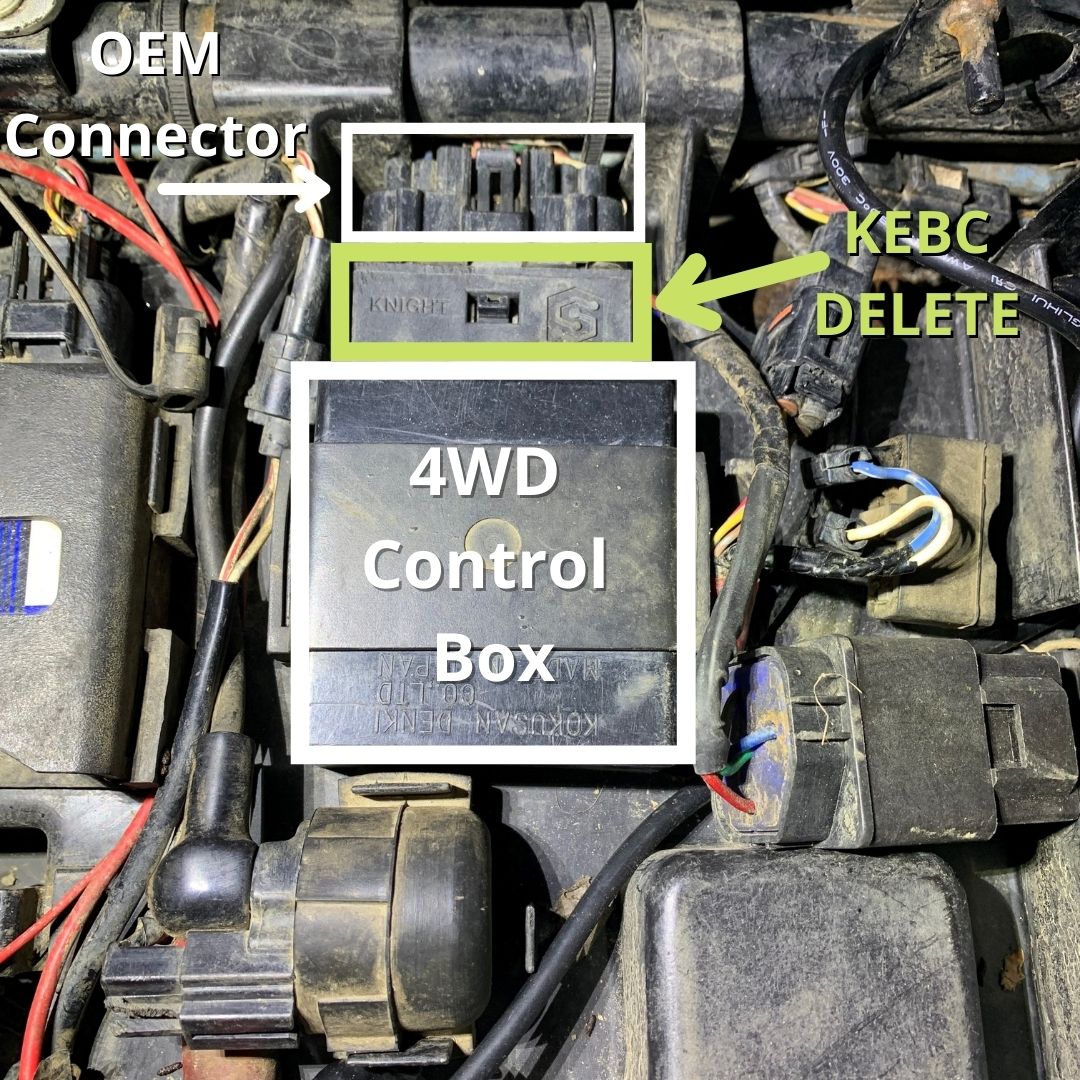

Simply take your seat off, find the 4wd control box, plug our adapter into the 4wd control box and then plug the original OEM connector into our adapter. Done!

On 2012 and newer Brute Force the 4WD control box is located under the front fender plastics.

Check out the installation video below!

Description

This will bypass the belt switch which is a common failure point and puts your ATV in limp mode. No more limp mode!

Our KEBC Delete with Hole Cover Combo allows you to remove your Kawasaki Engine Brake Control (KEBC).  Your engine will perform normally and you will no longer go into limp mode again!

Plug and Play design allows for easy installation.  Once installed you can choose to leave your KEBC actuator on your vehicle, or remove it altogether.

Aluminum hole cover kit replaces the KEBC actuator housing to prevent any intake of water or mud.

This kit is also a must have for your display lights to function properly with any of our manual conversion kits!  Without it, your display lights will not function.

Our Belt Switch Bypass Kit is now included with this kit for FREE!

Fits
  • All Brute Force
  • All KVF
  • All Prairie
  • 2004 Suzuki Twin Peaks LT-V700F
  • 2004-2006 Arctic Cat 650 V-2

Replaces OEM part numbers 16172-0017 & 16172-0019

Includes
  • KEBC Delete Wire Harness
  • 6 Pin Connector Plug
  • Aluminum Hole Cover Kit
  • Belt Switch Bypass
Installation

Simply take your seat off, find the 4wd control box, plug our adapter into the 4wd control box and then plug the original OEM connector into our adapter. Done!

On 2012 and newer Brute Force the 4WD control box is located under the front fender plastics.

Check out the installation video below!
